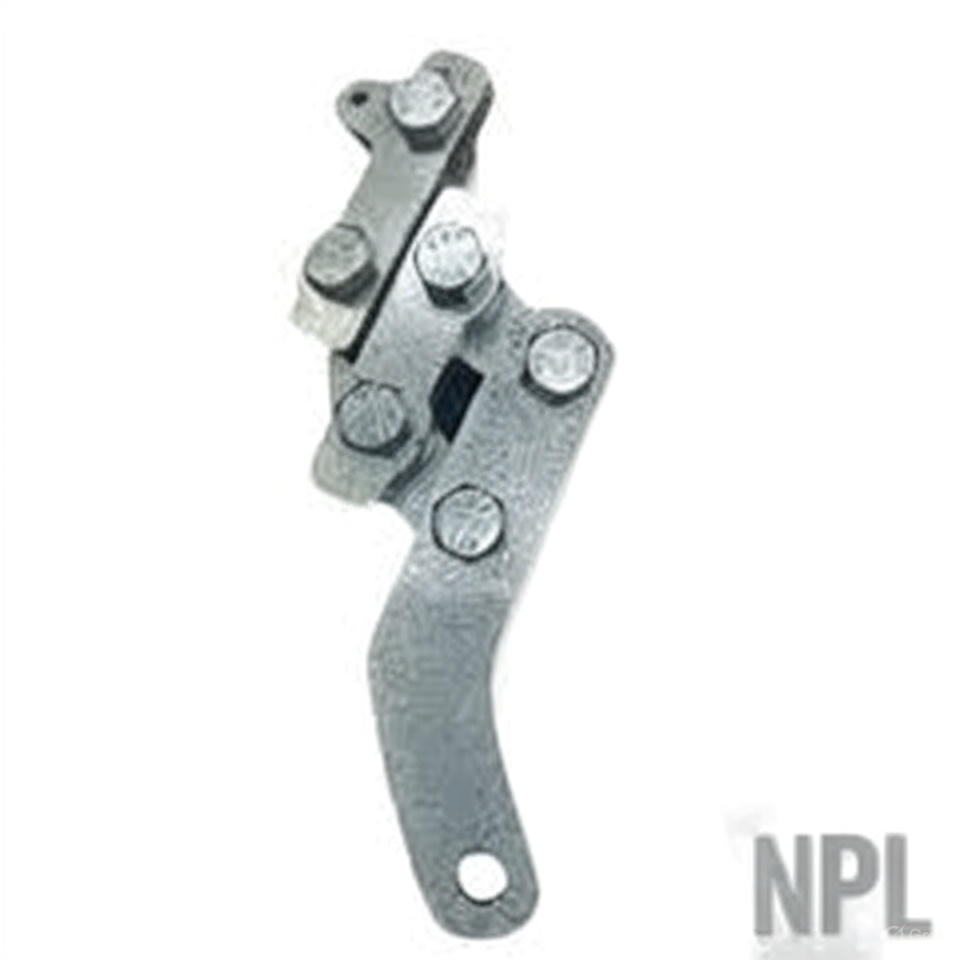

Come along Clamp

Come along Clamp Specification

Size
Customizable as per conductor size

Feature
Corrosion resistant, high strength grip, easy installation

Coating Type
Galvanized

Layer
Single

Surface Treatment
Zinc Plated

Thermal Conductivity
50 W/mK

Installation Guideline
Securely clamp around the conductor before tensioning

Density
7.85 Gram per cubic centimeter(g/cm3)

Product Type
Come Along Clamp

Material
Galvanized Steel

Rated Voltage
Up to 11 kV

Tensile Strength
40 kN

Width
55 mm

Thickness
12 mm

Application
Used for holding and tensioning conductors during overhead line construction

Breakdown Voltage
35 kV

Heat Conductivity
50 W/mK

Color
Silver

Max Withstanding Temperature
400C

Operation Method
Manual with lever action

Clamp Jaw Type
Serrated for enhanced grip

Maximum Conductor Diameter
Up to 32 mm

Packaging Type
Wooden box or as required

Corrosion Resistance
Yes

Safety Factor
5:1

Weight
2.8 kg

Come along Clamp Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Come along Clamp

A specialized tool for 11 kV400 kV power lines, used with polymer disc insulators during conductor installation or maintenance. Made from high-strength aluminum alloy or galvanized steel, it securely grips conductors (ACSR/AAAC, e.g., Rabbit, Panther, Zebra) without damage, facilitating tensioning or stringing. Features a robust, anti-slip jaw design for reliable hold. Conforms to IS:2121.

Superior Grip and Durability

Featuring serrated clamp jaws and galvanized steel construction, this Come Along Clamp delivers enhanced grip strength and extended product lifespan. The zinc-plated surface ensures optimal corrosion resistance, making it suitable for challenging outdoor environments encountered in overhead line construction projects.

Reliable Performance and Safety

Engineered with a safety factor of 5:1 and the ability to withstand up to 40 kN of tensile force, this clamp guarantees reliable and secure holding of conductors. Its design adheres to industry safety standards, supported by a high breakdown voltage and resistance to temperatures up to 400C.

Versatile and Easy to Install

Compatible with conductors up to 32 mm in diameter and customizable to specific size requirements, this clamp accommodates a wide range of applications. Manual lever action simplifies installation, enabling quick, secure clamping of overhead conductors, while its compact weight of 2.8 kg aids ease of handling.

FAQ's of Come along Clamp:

Q: How is the Come Along Clamp used during overhead line construction?

A: The Come Along Clamp is utilized to securely hold and tension conductors while overhead lines are being installed. You simply clamp it around the conductor using the manual lever action before tensioning, ensuring stability and safety during the process.

Q: What benefits does the serrated jaw type offer for this clamp?

A: The serrated jaw design provides superior grip on the conductor, minimizing slippage and ensuring a firm hold during tensioning. This enhances safety and reliability, especially in demanding overhead line installation environments.

Q: When should I use a clamp with a safety factor of 5:1?

A: A safety factor of 5:1 is essential when handling high-tension conductors, as it offers enhanced operational safety by withstanding loads five times higher than the working load. Use this clamp in projects where safety and reliability are top priorities.

Q: Where can this clamp be installed, and on what type of conductors?

A: This clamp is suitable for overhead power line construction in various outdoor locations. It is engineered to fit conductors up to 32 mm in diameter and can be customized to accommodate different sizes as needed, making it adaptable to diverse installation requirements.

Q: What is the process for installing the Come Along Clamp correctly?

A: To install, position the serrated jaw clamp securely around the conductor and operate the manual lever to achieve a tight hold. Ensure the clamp is fully engaged before applying tension to maintain conductor integrity and installer safety.

Q: What makes this clamp corrosion resistant and durable in outdoor settings?

A: Constructed from galvanized steel with a zinc-plated finish, this clamp offers strong resistance to environmental corrosion. The robust material and surface treatment protect it from moisture, chemicals, and temperature fluctuations, ensuring dependable performance over time.

Q: Can the clamp withstand electrical and thermal stress?

A: Yes, the clamp is rated for use up to 11 kV and can handle temperatures up to 400C. With a breakdown voltage of 35 kV and excellent thermal conductivity (50 W/mK), it is well-suited for demanding electrical and thermal applications in overhead line construction.
