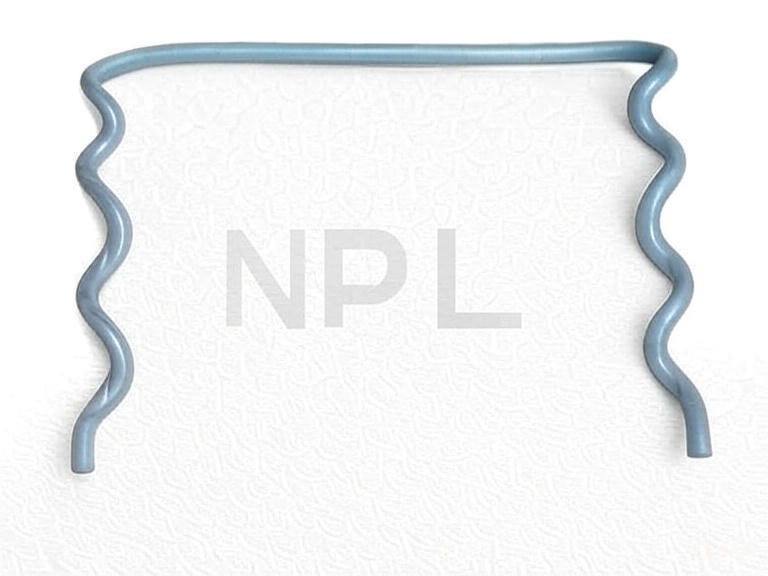

PVC Line Separator

PVC Line Separator Specification

Layer
Single Layer

Feature
Corrosion Resistant, Electrical Insulation

Size
25 mm x Custom Length

Coating Type
Uncoated

Surface Treatment
Smooth, Semi-matte

Density
1.38 Gram per cubic centimeter(g/cm3)

Installation Guideline
Snap-fit or Screw Mount

Thermal Conductivity
0.19 W/mK

Product Type
Line Separator

Material
PVC (Polyvinyl Chloride)

Rated Voltage
600V

Tensile Strength
54 MPa

Width
25 mm

Thickness
2 mm

Application
Electrical Panel, Busbar Line Separation

Breakdown Voltage
>25 kV/mm

Heat Conductivity
0.19 W/mK

Color
Grey

Max Withstanding Temperature
+80C

Operating Temperature Range
-10C to +80C

Hardness (Shore D)
80

Finish
Glossy or Semi-matte

Chemical Resistance
Excellent against acids, alkalis, and oils

Flammability Rating
UL94 V-0

Packaging
Standard Bundles or Customized

Water Absorption
<0.1% (24h at 23C)

Environmental Compliance
RoHS Compliant

Dielectric Strength
40 kV/mm

PVC Line Separator Trade Information

Minimum Order Quantity
300 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About PVC Line Separator

Used in 11 kV33 kV overhead power lines with polymer disc insulators, PVC line separators prevent mid-span conductor clashing in LT and HT lines. Made from high-quality, UV-stabilized PVC, they are lightweight, durable, and corrosion-resistant. Available in flat or spiral types, suitable for single-phase (2/3-wire) or three-phase (4/5-wire) configurations. Conforms to IS:14255.

Superior Electrical Insulation and Safety

Engineered for high voltage applications, the PVC Line Separator provides outstanding electrical insulation, supporting rated voltages up to 600V and offering a breakdown voltage exceeding 25 kV/mm. The UL94 V-0 flammability rating assures fire safety, making it appropriate for critical installations where operational safety is paramount.

Robust Chemical, Thermal, and Mechanical Performance

Thanks to its PVC construction, this line separator withstands acids, alkalis, and oils with ease. Its operating temperature range of -10C to +80C, along with a Shore D hardness of 80 and a tensile strength of 54 MPa, ensures reliable performance under thermal and mechanical stress. The product's low water absorption and smooth or semi-matte surface further enhance its longevity.

Effortless Installation and Customizable Options

Designed for simple installation, the separator supports both snap-fit and screw mounting methods, fitting seamlessly into various setups. Available in standard bundles or customizable lengths and finishes, it offers flexibility to suit the specific needs of electrical panels, busbar setups, and other industrial applications.

FAQ's of PVC Line Separator:

Q: How is the PVC Line Separator installed in an electrical panel?

A: The PVC Line Separator can be installed using either a snap-fit mechanism or screw mounting, making it adaptable for various electrical panel or busbar configurations. Both methods ensure secure positioning and stability during operation.

Q: What are the primary benefits of using the PVC Line Separator in electrical applications?

A: This separator provides exceptional electrical insulation with a dielectric strength of 40 kV/mm, superior chemical resistance, and a UL94 V-0 flammability rating. It also offers a robust mechanical profile, low water absorption, and is RoHS compliant for environmental safety.

Q: When should I choose this separator for my project?

A: Opt for this product when your electrical or industrial application requires elite electrical insulation, high breakdown voltage (>25 kV/mm), excellent chemical resistance, and fire-retardant properties. It is particularly well-suited for busbar and electrical panel segregation.

Q: Where is this PVC Line Separator typically used?

A: The separator is primarily employed in electrical panels and busbar line separation, but its chemical resistance and mechanical strength also allow use in various industrial environments where insulation and protection are critical.

Q: What makes this line separator environmentally compliant?

A: The PVC Line Separator complies with RoHS standards, ensuring it is free from hazardous substances, making it safer for users and minimizing environmental impact during its lifecycle.

Q: How does the product perform in harsh chemical environments?

A: It offers excellent resistance to acids, alkalis, and oils, making it highly suitable for environments where exposure to aggressive chemicals is likely. This ensures long-term durability and reliable operation.
