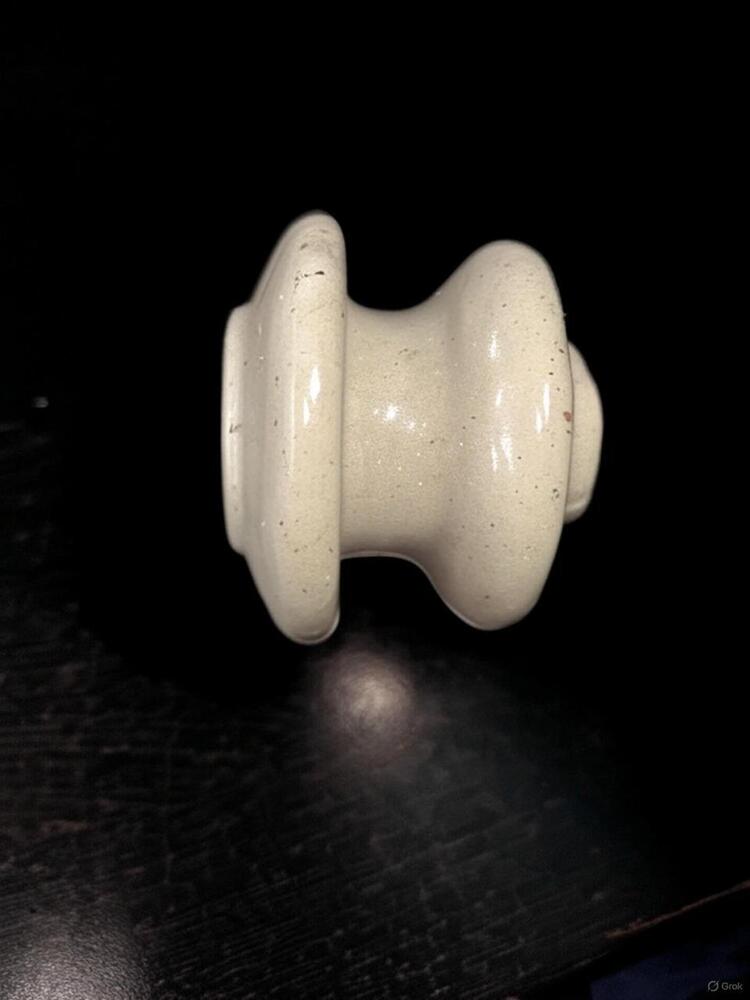

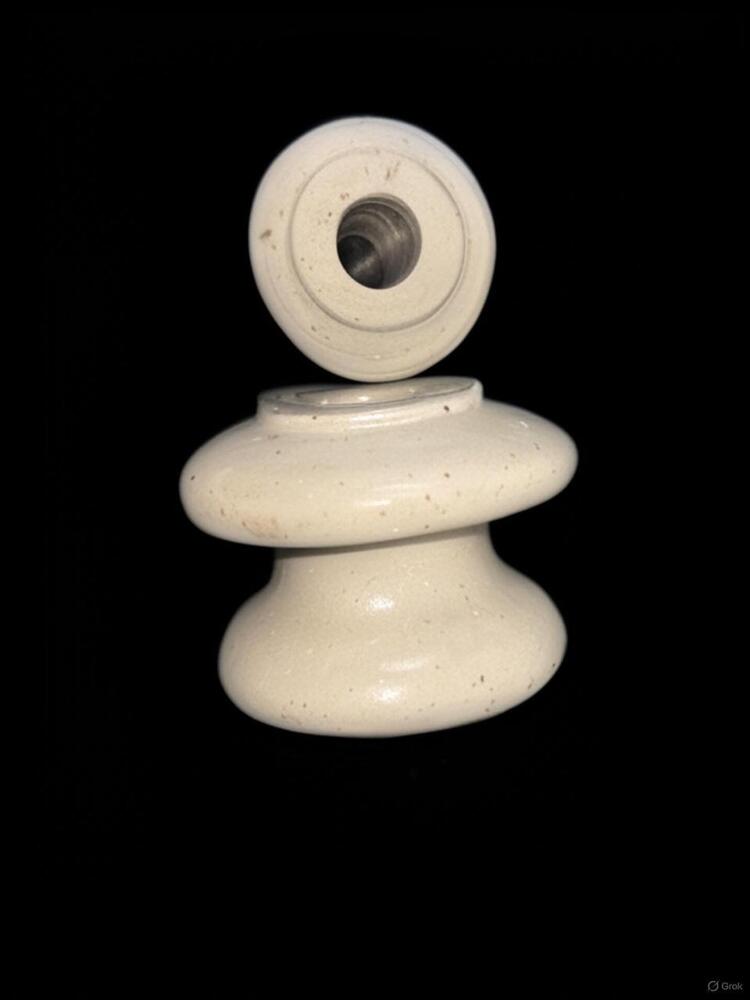

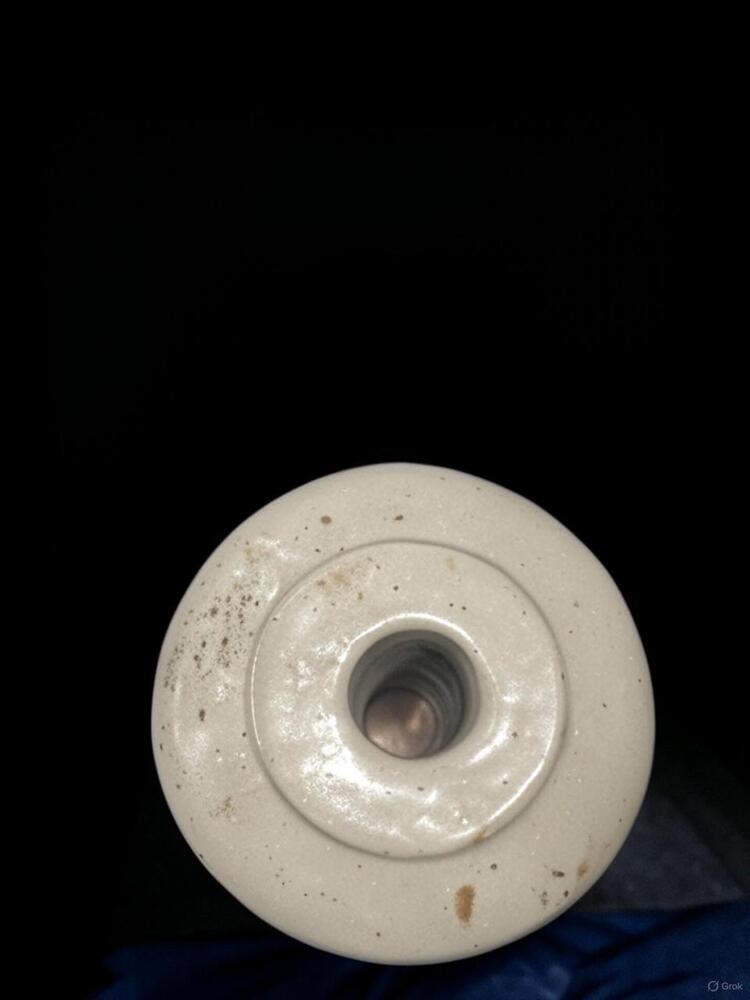

Shackle Insulator

Shackle Insulator Specification

Surface Treatment
Smooth

Feature
Hard

Product Type
Shackle Insulator

Material
Ceramic

Usage & Applications
Power Supply

Color
White

Phase
Single / Three

Features
Durable

Shackle Insulator Trade Information

Minimum Order Quantity
40 Pieces

Supply Ability
5000 Pieces Per Week

Delivery Time
2 Days

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

About Shackle Insulator

High-quality porcelain or polymer insulators for 1.1 kV distribution lines. Sizes: 50x65 mm, 75x90 mm, 100x115 mm. White/ Brown glazed, durable, low-maintenance, ideal for secure conductor support in overhead lines.

Engineered for Superior Durability

Our Shackle Insulator utilizes high-quality ceramic material, delivering exceptional hardness and ruggedness. The smooth surface treatment prevents dirt accumulation and extends the product's operational life, ensuring its effectiveness in single and three-phase systems.

Versatile Applications in Power Supply

These insulators are extensively used in power supply networks, supporting both single and three-phase configurations. Their resilient nature and reliable insulation make them suitable for overhead and distribution lines, enhancing safety and stability in Indian electrical infrastructures.

FAQ's of Shackle Insulator:

Q: How does the shackle insulator support different phase types in power supply systems?

A: The shackle insulator is designed to be compatible with both single-phase and three-phase power systems, providing effective insulation and support for conductors in overhead lines, regardless of the phase configuration.

Q: What material is used in manufacturing the shackle insulator, and what benefits does it offer?

A: This insulator is made of high-quality ceramic, which ensures excellent electrical insulation, thermal stability, and mechanical strength, making it durable and suitable for long-term use in outdoor environments.

Q: When should shackle insulators be installed in electrical setups?

A: Shackle insulators are recommended for installation in low to medium voltage power lines during initial setup, upgrades, or maintenance to enhance the safety and reliability of electrical distribution systems.

Q: Where are these shackle insulators most commonly applied?

A: They are primarily used in Indian overhead distribution systems and utility networks, especially where strong, reliable insulation and mechanical support for conductors are essential.

Q: What is the process for installing a ceramic shackle insulator?

A: Installation involves securely mounting the insulator to the supporting structure, then threading and tightening the conductor through or around the insulator, ensuring a stable and firm connection to prevent current leakage or line sagging.

Q: How does the surface treatment contribute to the insulator's performance?

A: The smooth surface treatment helps repel moisture and dust, minimizing tracking and contamination, which in turn enhances both mechanical durability and electrical insulation for safer operation.

Q: What are the key advantages of using these shackle insulators in power networks?

A: They provide outstanding durability, resist harsh weather, and offer reliable long-term insulation. This leads to fewer maintenance requirements, improved system safety, and reinforced operational efficiency in power supply networks.
